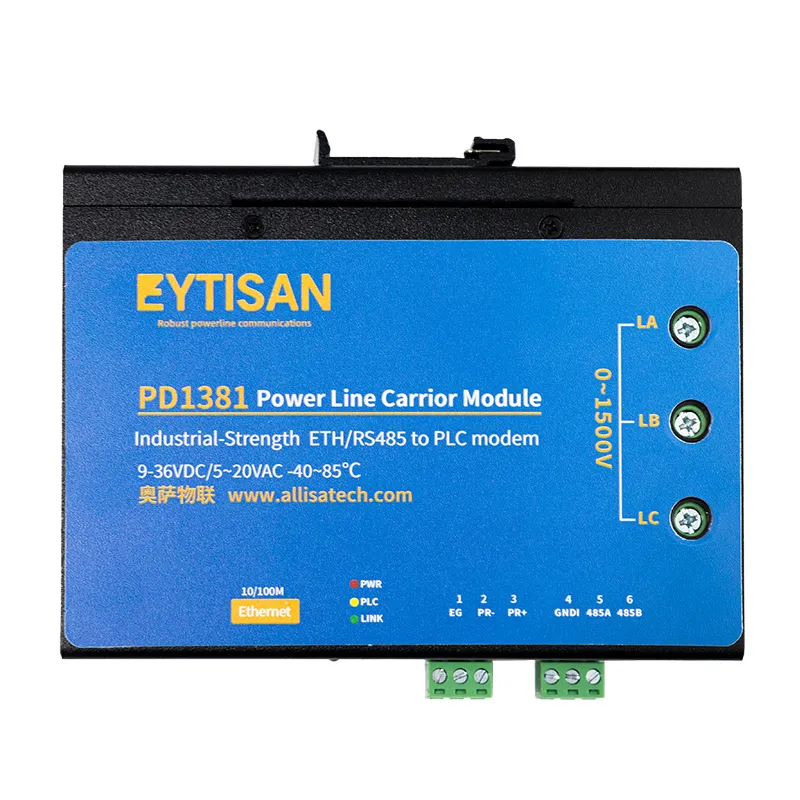

PD1381 High-Voltage Power Line Carrier Module, optimized for high-voltage three-phase AC power line applications. Suitable for low-voltage AC/DC environments up to 114V; supports DC, single-phase, and three-phase power lines. Specifically engineered for high-speed carrier communication in complex industrial settings, featuring robust environmental and electromagnetic compatibility design for superior adaptability and plug-and-play deployment. Supports high-speed 100Mbps actual relays with point-to-point range of up to 800 meters.

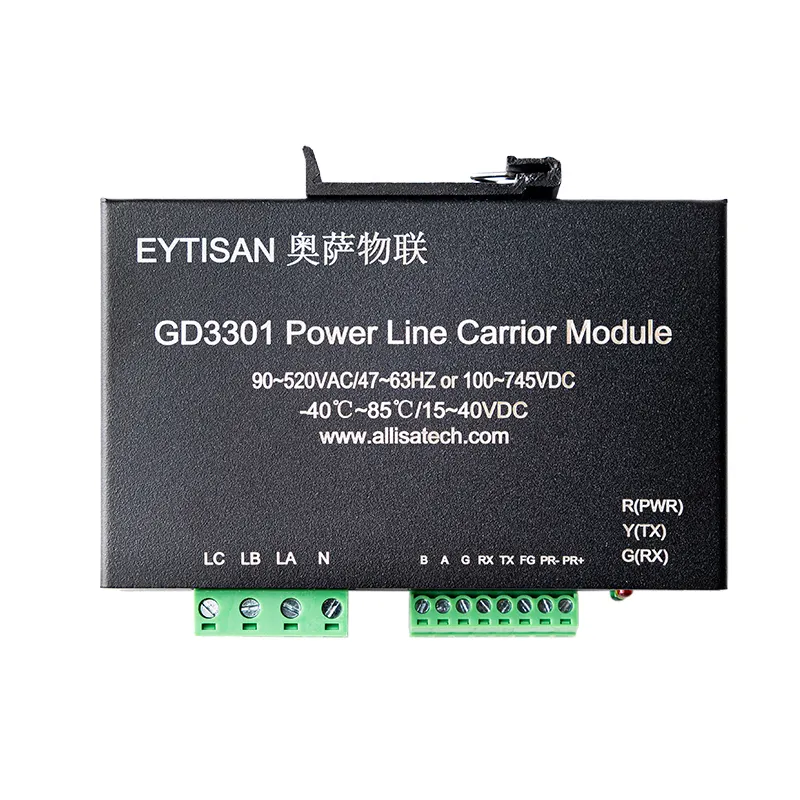

The GD3301/GD2301 carrier module is built on our proprietary VS1062 G3 chip. It is a high-performance module designed for medium and low-voltage general industrial power line carrier applications. Featuring wide-range AC/DC power supply and carrier communication, it integrates a high-power line driver and an in-house protocol stack to significantly enhance communication stability and range. Ideal for complex power line environments, this module supports both general industrial and Industrial IoT (IIoT) applications. Bulk orders include firmware customization services and a fully domesticated version option. The GD3301DIN features a sheet metal enclosure with DIN35 mounting, dual power inputs (AC or DC), and is compatible with all use cases of the wall-mounted GD3301/2301.

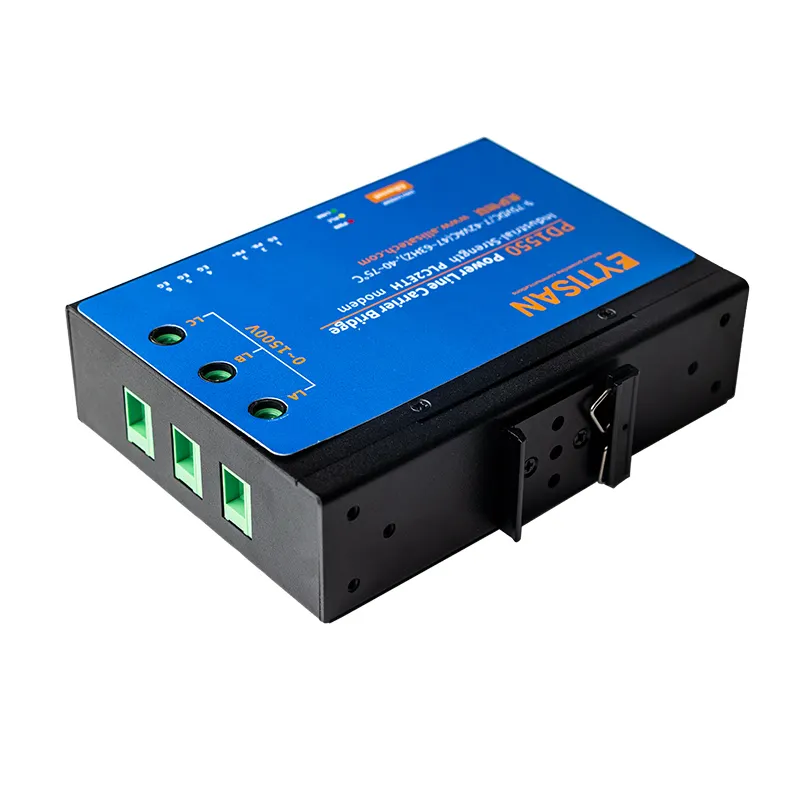

The PD1550 Industrial High-Speed Power Line Ethernet Bridge is a ultra-wide voltage, high-reliability communication module developed by Wuxi Aosa IoT Technology Co., Ltd. It operates in low-voltage AC/DC environments up to 1140V and supports DC, single-phase, and three-phase power line applications. Optimized for high-speed PLC in complex industrial settings, it features robust environmental and EMC design, offers strong adaptability, and is plug-and-play ready.

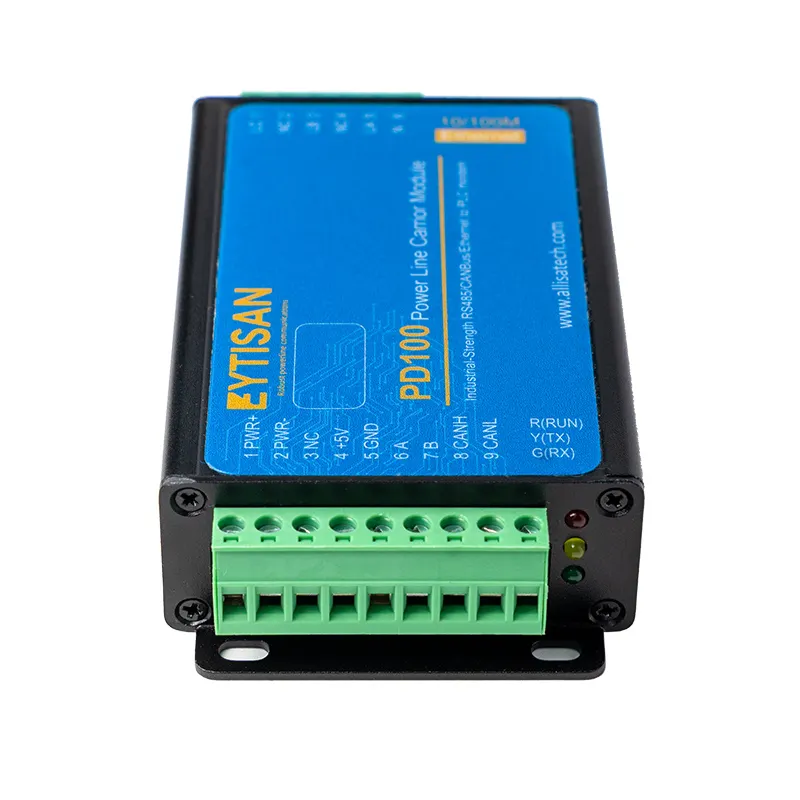

The PD100 Power Line Carrier (PLC) modem is optimized for industrial environments with challenging cabling, diverse communication methods, and complex networking requirements. Featuring a wide-range low-voltage AC/DC power supply design, it supports all common industrial bus power systems (24VDC/36VAC/48VDC, etc.). With separated power and PLC coupling interfaces, the coupling interface directly connects to standard physical links (twisted pair, coaxial cable, or power lines). This allows direct connection regardless of whether the communication link is powered, AC, or DC. The device supports common AC/DC systems, including 24VDC, 48VDC, 36VAC, 110VAC, 220VAC, and 380VAC(three-phase four-wire).

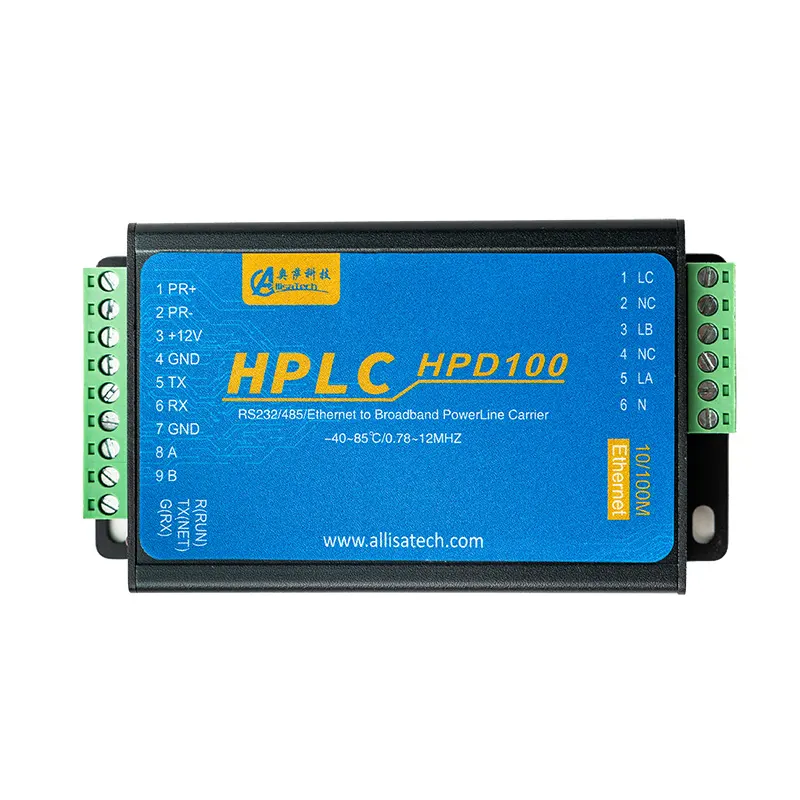

The HPD100 power line carrier modem is optimized for industrial environments where cabling is challenging, communication methods vary, and networked communication is required. Featuring a wide-range low-voltage AC/DC power supply design, it supports all common industrial bus power systems (24V DC, 36V AC, 48V DC, etc.). The power supply and carrier coupling interfaces are separated, allowing the coupling interface to connect directly to common physical links (twisted pair, coaxial cable, power lines). This enables direct connection regardless of whether the physical link is powered or uses AC or DC. It supports common AC/DC systems, including 24V DC, 48V DC, 36V AC, 110VAC, 220VAC, and 380VAC(three-phase four-wire).

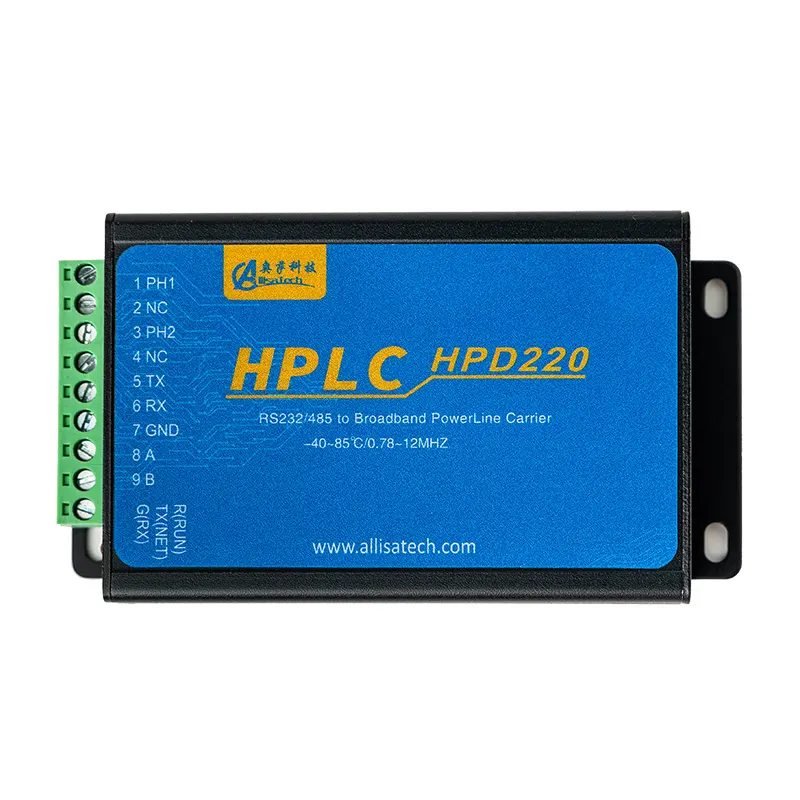

The HPD220 power-line communication module is optimized for industrial environments with challenging wiring and networking requirements. Built on our HPLC core module HPM100, it features an integrated power and communication port, eliminating the need for a separate power supply. It draws power and enables PLC communication directly from the site's 110/127/220/380VAC power lines. The HPD220 supports DC, single-phase AC, and three-phase AC systems using two-wire communication.
