Application of Power Line Communication in Oil Fume Monitoring Systems
Catering outlet monitoring data is transmitted to the central collection point via power lines, reducing on-site wiring.
System Architecture

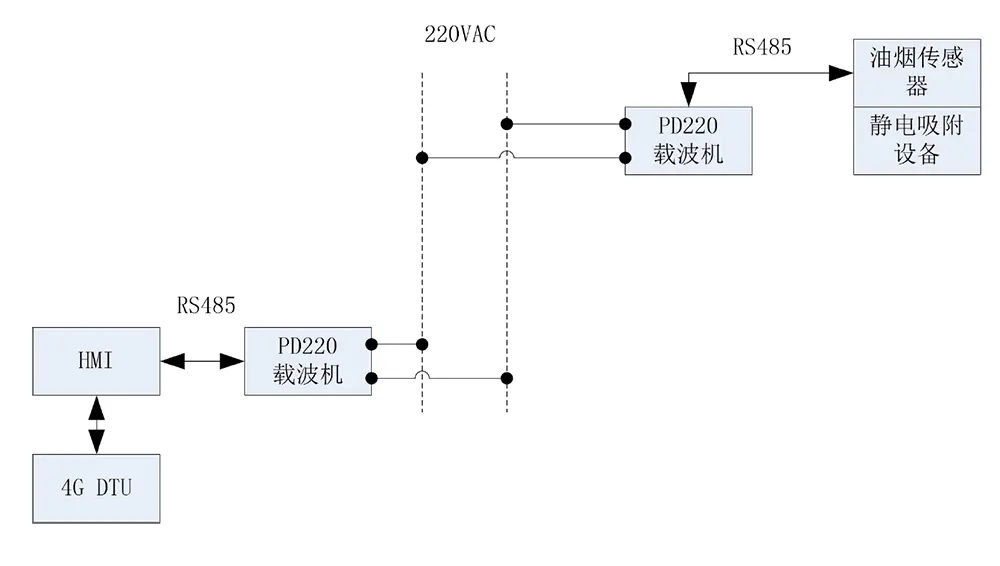

This solution consists of two PD220 devices communicating in a point-to-point configuration. The customer's distribution room HMI connects to the indoor carrier via RS485, while the rooftop grease sensor connects to the outdoor PD220 via RS485. Only the existing 220VAC network is available for indoor-outdoor communication.
Use Cases
Online Grease Fume Monitoring System
Online Environmental Pollution Control Monitoring System
Structure Composition
Extend App
Network expansion can be achieved by adding the 4G carrier gateway GW100 and deploying redundant LORA communication terminals (one active, one standby).
Replace third-party 4G DTUs on-site to reduce costs and improve system reliability.
For the complete device list, point schedule, and on-site commissioning records, contact our technical team. We will provide tailored recommendations based on your site's power conditions, point distribution, and communication distances.
