Power Line Communication Application for Agricultural Irrigation
Irrigation pump stations and valve control points are connected via a power-line carrier network to enable centralized, rotational irrigation scheduling.
System Architecture

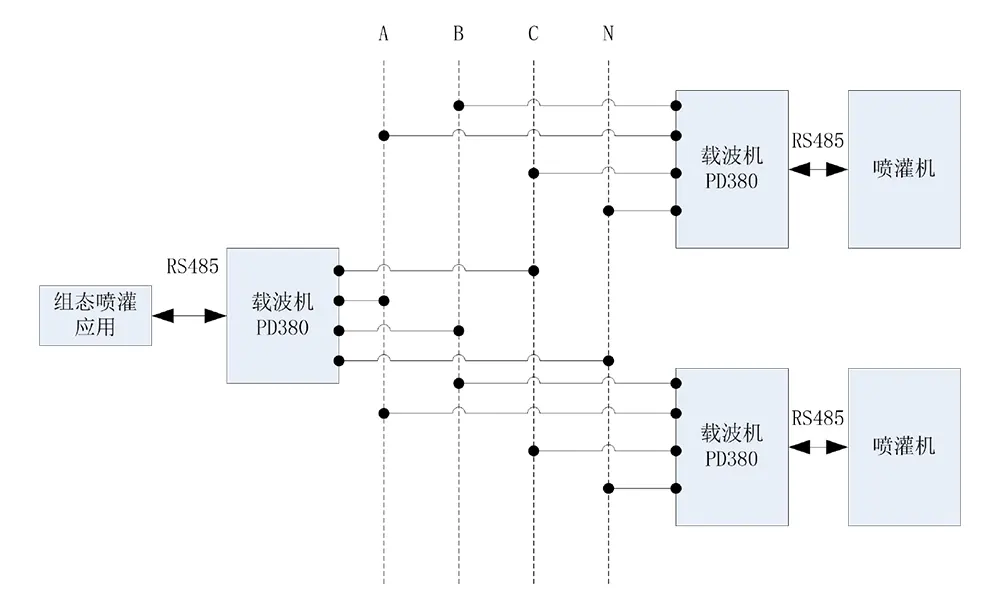

This solution uses multiple PD380 power line carrier units to form a network for communication. The SCADA control program at the monitoring center communicates transparently with the remote carrier units to operate the irrigation machines. Each PD380 connects to the SCADA system, with one end linked via the carrier unit and RS485 interface to an irrigation machine. The site is powered by 380VAC.
Use Cases
Remote Agricultural Irrigation System
Structure Composition
Extend App
Three-phase three-wire or three-phase four-wire power line systems can directly connect to PD220 using only two wires for communication.
For the complete device list, point schedule, and on-site commissioning records, contact our technical team. We will provide tailored recommendations based on your site's power conditions, point distribution, and communication distances.
