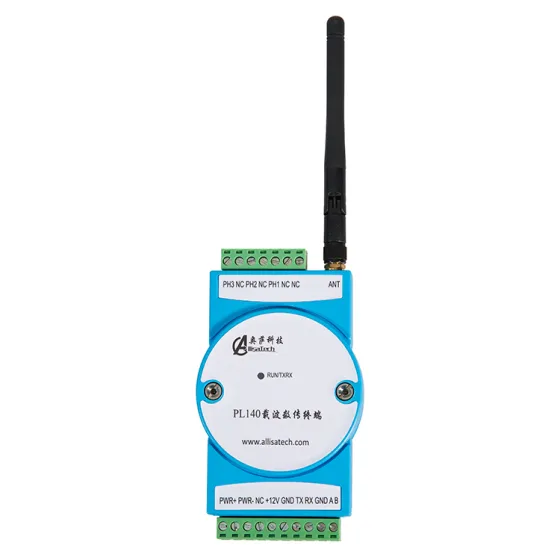

Application Solution for Carrier Data Terminal in Smart Dimming Systems
Install a carrier data transmission terminal on the streetlight circuit side to receive dimming commands via strategy and report operational status.

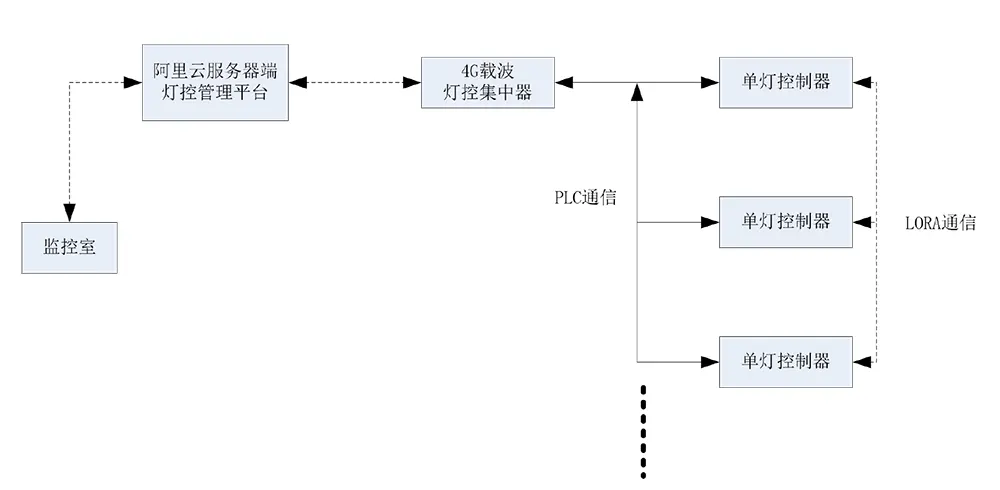

System Architecture
This solution consists of one centralized streetlight controller (4G PLC gateway GW100) and 2 to 100 individual streetlight controllers. It utilizes a hybrid LoRa and PLC networking technology with the following features:
Loop control, teleindication
· Supports electrical parameter acquisition
· Supports scheduled and real-time lighting control (time-based, geolocation, and light intensity)
· Supports single light, broadcast, and multicast control
· Supports alerts
· 4G Uplink Communication
· Downstream supports LoRa, Power Line Communication, and 485 communication
· Supports remote upgrades
Anti-theft Cable Technology
· Adaptive Dimming for Energy Efficiency
Use Cases

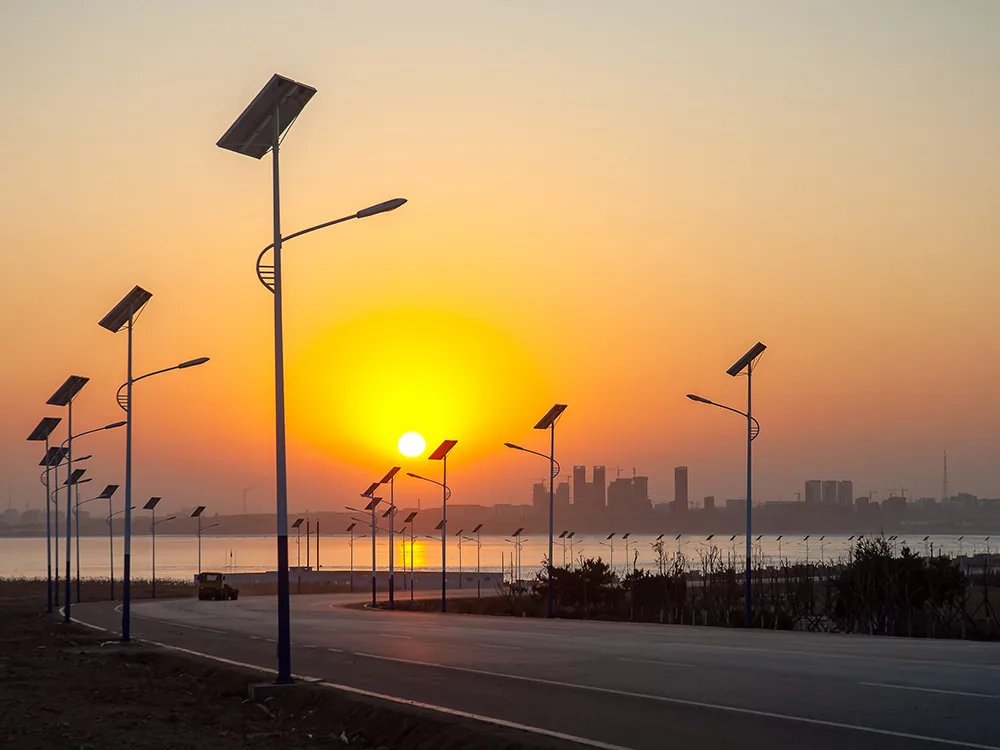

Smart Streetlight Control and Management System
Smart Building / Smart Campus Energy Management System
Tunnel Lighting System
Airport Streetlight Control System
Structure Composition
Extend App
Refer to the Smart Dimming System Requirements Document.
For the complete device list, point schedule, and on-site commissioning records, contact our technical team. We will provide tailored recommendations based on your site's power conditions, point distribution, and communication distances.
